Figure 8 Cable(GYTC8Y)
Figure 8 Cable(GYTC8Y) self supporting messenger wire
Figure 8 Cable,figure 8 fiber optic cable,figure 8 drop cable
立即咨询详情
Product details
Description

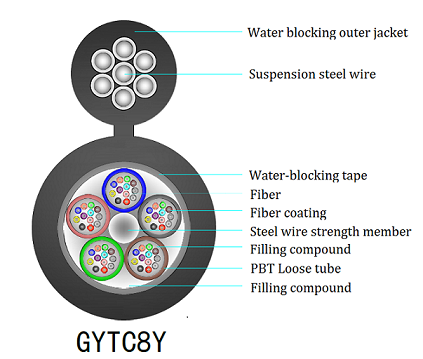

The fibers, 150um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire located in the center of core as a metallic strength member. The tubes( and fillers) are stranded around the strength member into a compact and circular cable core. The supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics
High tensile strength of stranede wires meet the requirement of self-supporting and reduce installation cost
Good mechanical and temperature performance
High strength loose tube that is hydeolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as teh central strength member
Loose tube filling compound
100% cable core filling
Technical parameters
|
Cable type |
Fiber Count |
Tubes |
Fillers |
Cable Weight(kg/km) |
Cable Diameter(mm) |
Tensile Strength |
Crush Risistance |
Bending Radius |
|
GYTC8Y-2~6 |
2~6 |
1 |
4 |
214 |
6.8*9.2*18.0 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8Y-8~12 |
8~12 |
2 |
3 |
214 |
6.8*9.2*18.0 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8Y-14~18 |
14~18 |
3 |
2 |
214 |
6.8*9.2*18.0 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8Y-22~24 |
20~24 |
4 |
1 |
214 |
6.8*9.2*18.0 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8Y-26~30 |
26~30 |
5 |
0 |
214 |
6.8*9.2*18.0 |
600/1500 |
300/1000 |
10D/20D |
